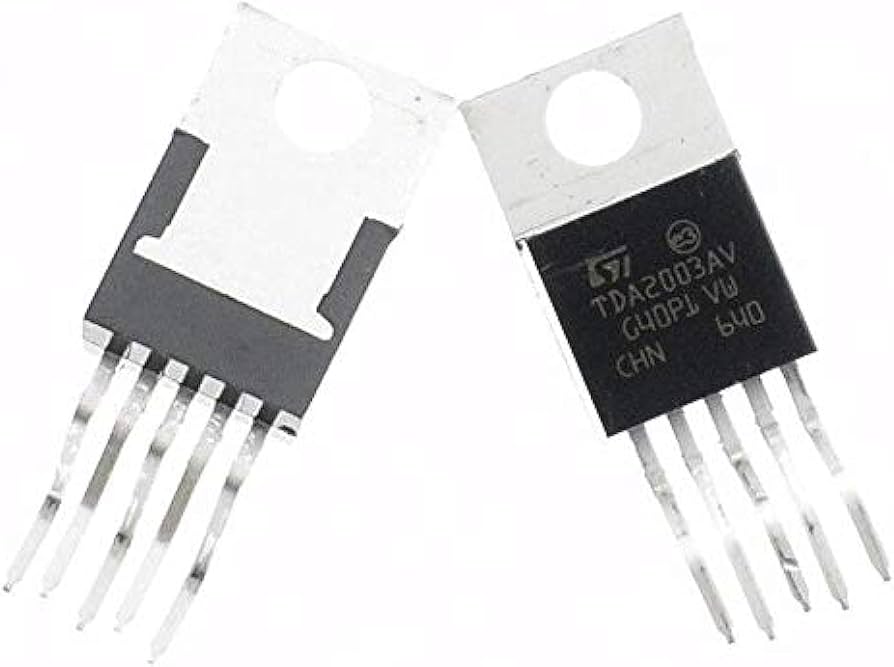

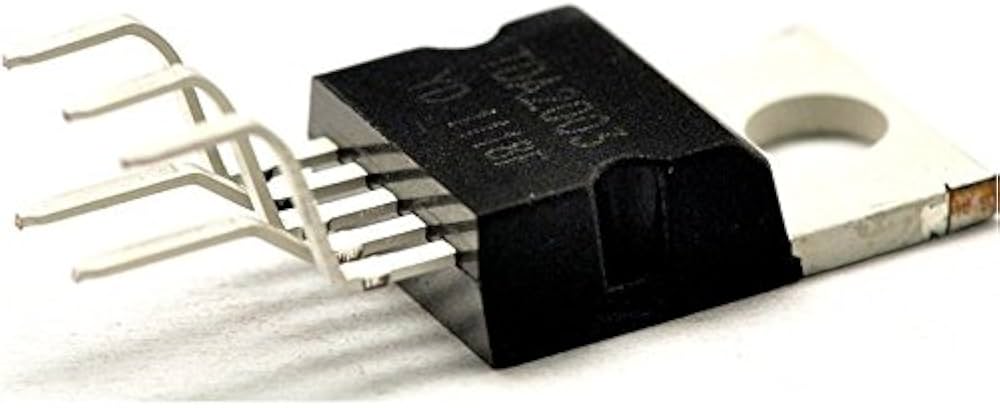

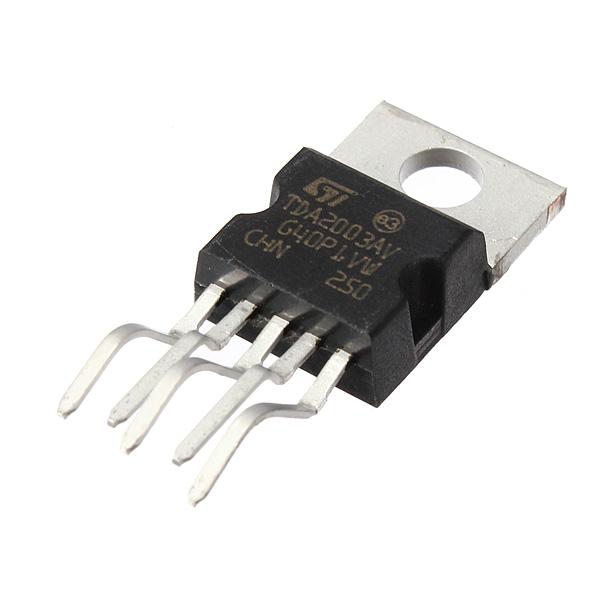

TDA2003
35.00৳
Features
✅ High output current capability
✅ Low harmonic and crossover distortion
✅ Short-circuit protection
✅ Thermal overload protection
✅ Load-dump protection for automotive use
✅ Requires few external components
✅ Easy to build amplifier circuits
Description
The TDA2003 is a popular Class-AB audio power amplifier IC developed by STMicroelectronics. It was originally designed for car radio and automotive audio systems, but due to its simple circuit design, low cost, and reliable performance, it is widely used in DIY speaker amplifiers, guitar amplifiers, and small home audio systems. The IC can deliver around 10W of output power and is capable of driving low-impedance speakers while maintaining low distortion.
Specifications
- IC Type: Class-AB Audio Amplifier
- Package: Pentawatt-5 / TO-220
- Operating Voltage: 8V – 18V DC
- Maximum Supply Voltage: 28V DC
- Output Power:
- 10W @ 4Ω Speaker
- Up to 12W under certain conditions
- Output Current: Up to 3.5A
- Frequency Response: 40Hz – 15kHz
- Low Harmonic Distortion
