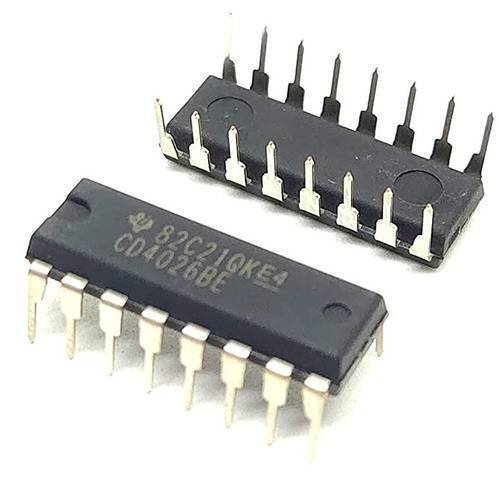

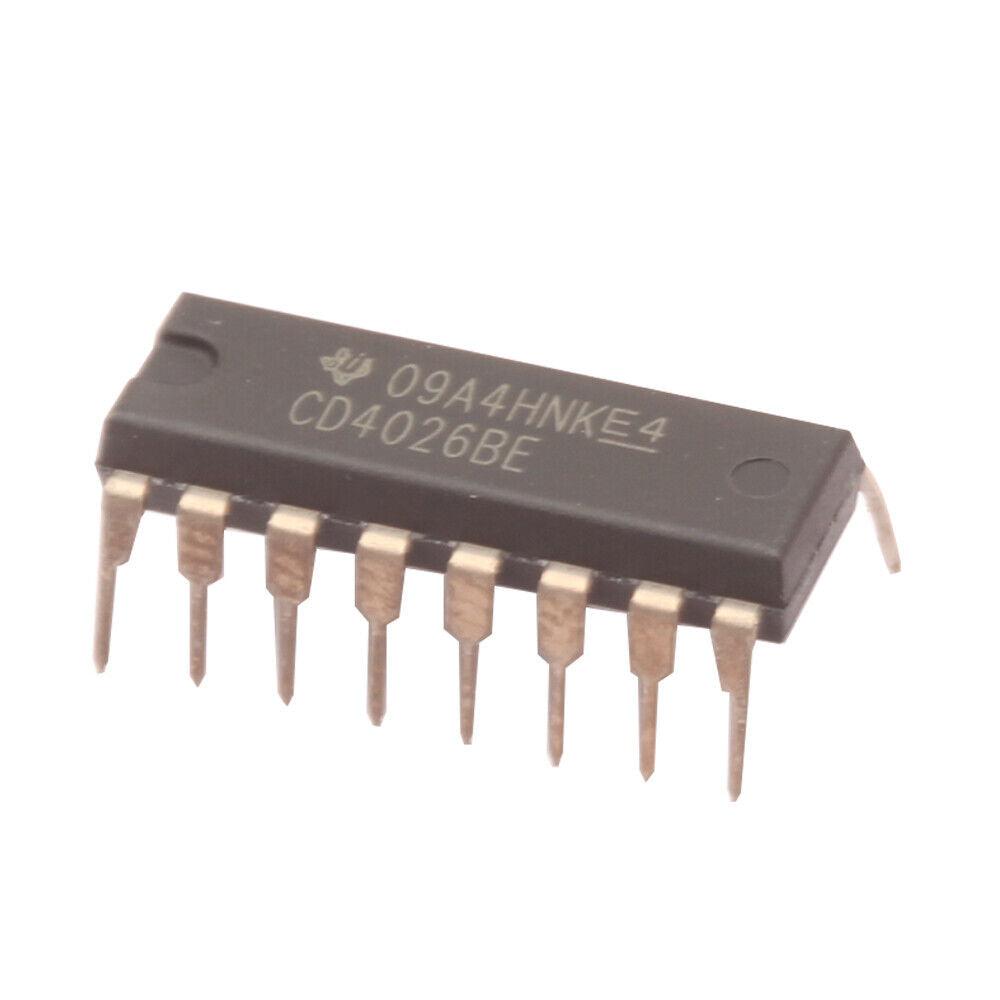

CD4026
35.00৳
Features
✅ Directly drives a 7-segment display
✅ Counts from 0 to 9 automatically
✅ Built-in display decoder
✅ Low power consumption
✅ Carry Out pin for cascading multiple digits
✅ Reset and Clock Inhibit functions
Description
The CD4026 is a CMOS Decade Counter and 7-Segment Display Driver IC. It is specially designed to count clock pulses and directly drive a common cathode 7-segment display without requiring a separate decoder IC. Unlike the CD4017, which provides 10 sequential outputs (Q0–Q9), the CD4026 automatically converts the count into the correct 7-segment pattern, allowing numbers 0 to 9 to be displayed directly on a 7-segment display. This makes it ideal for counters, digital clocks, scoreboards, and frequency meters.
Specifications
- IC Type: Decade Counter + 7-Segment Driver
- Package: DIP-16 / SOP-16
- Operating Voltage: 3V – 15V
- Count Range: 0–9
- Display Type: Common Cathode 7-Segment
- Clock Input Frequency: Up to several MHz
- Low Power CMOS Technology
